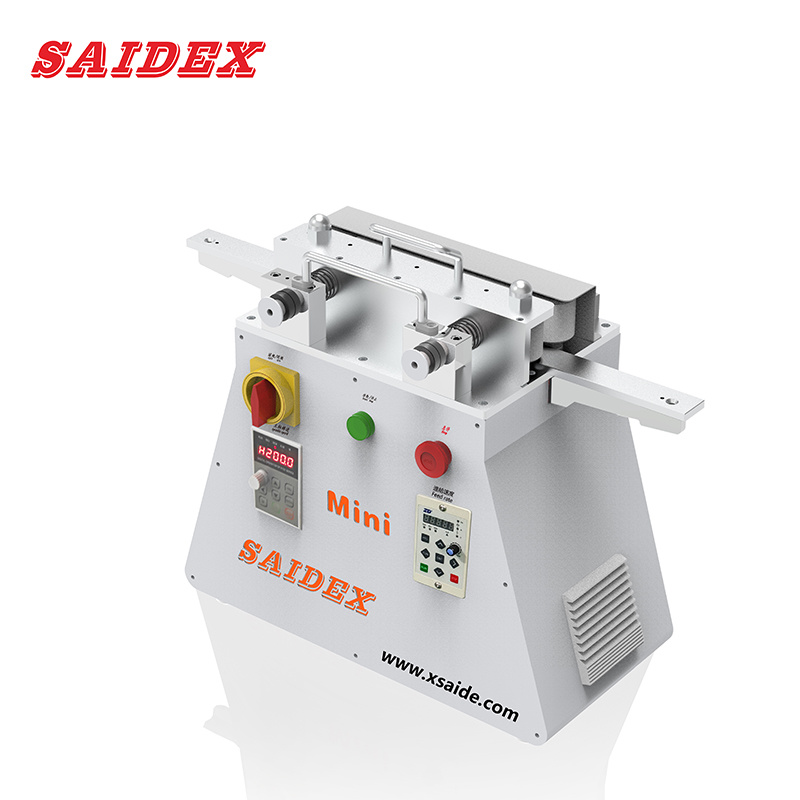

Mini Portable Acrylic Straight Edge Polishing Machine

Mini Portable Acrylic Straight Edge Polishing Machine

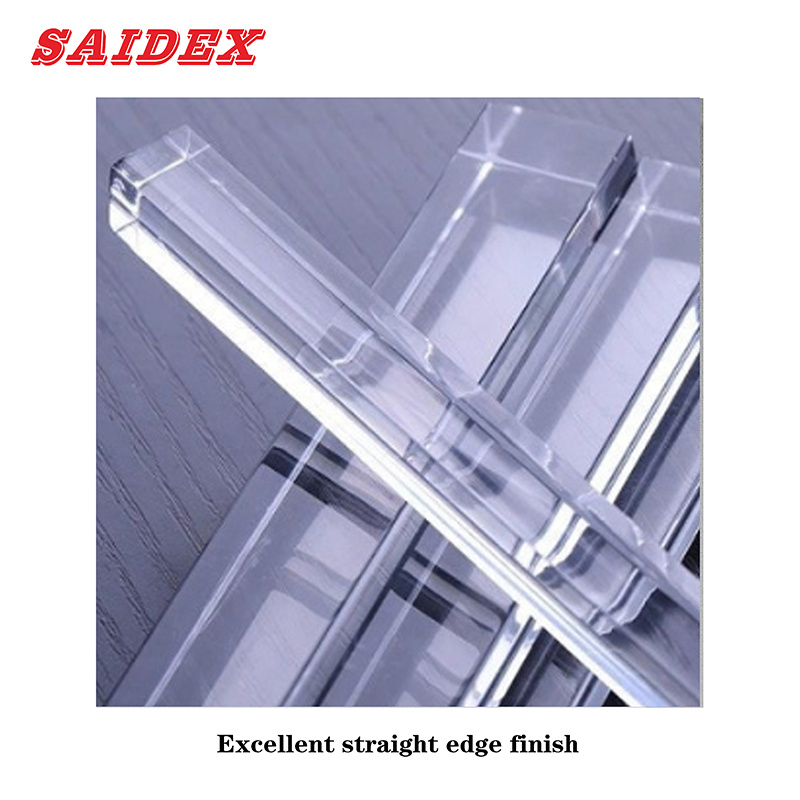

Acrylic straight edge polishing process

Product Features：

1.Small size, desktop machine, suitable for small batch production of advertisingcompanies,

2.Machine with handle design, easy to carry, no restrictions on the working place;

3.Adopting self-developed patented automatic feeder, which has the advantages of steplessspeed regulation and stable feeding;

4.The feeding platform is polished and electroplated, smooth and flat, avoiding scratches onthe product surface during processing, and can be continuously discharged for processing(no waiting);

5.Adopt air-cooled spindle, excellent heat dissipation performance and good operationstability;

6.Optional extended pulley bracket, meet Straightedge polishing requirements ofextra-large panels;

7.Suitable for various plastics (such as acrylic, plexiglass, PMMA, PS, MS, PET-G, PCPP, PE, POM, ABS) straight edge polishing.

Technical parameters：

Unit type	Mini
Machine size	700mm(L)× 330mm(W)×540mm(H)
Power supply	AC220
Straight side machinable size	Infinity（L）×30mm（T）
Processing mode	Automatic feeding(continuous)
Workbench size	350mm× 260mm
Cutting depth	less than 1mm
Processing speed	0-2m/min
Processing function	Acrylic Straight Edge Polishing
Dust collector pipe Dia	Φ50mm
Machine weight	42KG
