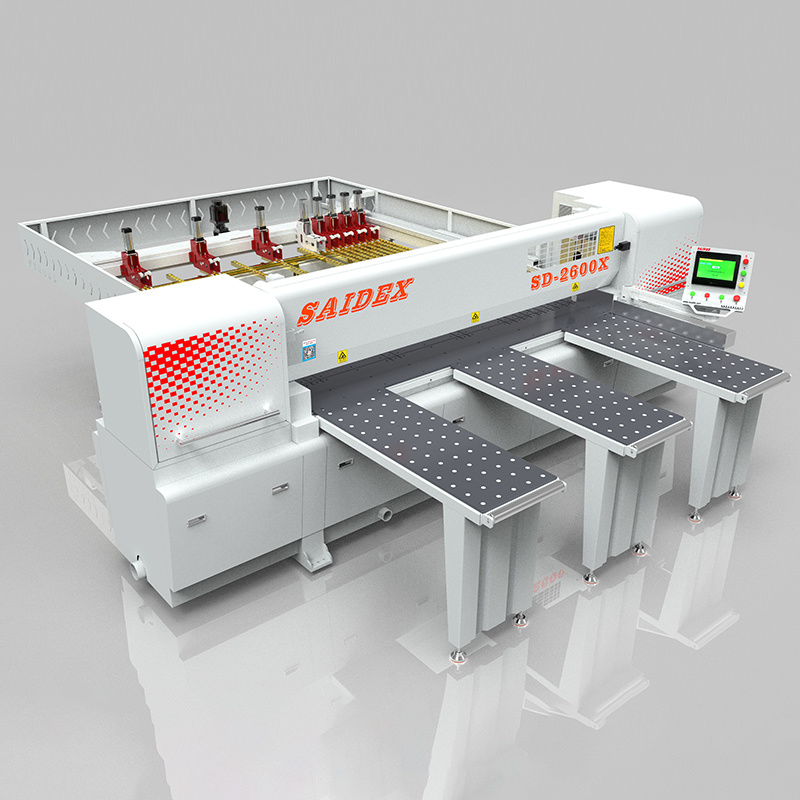

SD-2600X Acrylic Electronic cutting saw

SD-3200/2600/2600X Acrylic Electronic Cut-off Saws

♦ Reliable servo motor and control device

♦ High quality panasonic controller PLC

♦ Acrylic special purpose clamp, convenient for small materials

♦ Electronic ruler from German, precision compensation, resolution ±0.01mm

♦ Easy to transport materials, steel ball type air floating table, avoid the surface scratches

♦ Simplified, easy-to-learn control systems are dedicated to PMMA,MS,PS

♦ The guide rail of saw seat adopts imported brand, the Sawing straightness≤0.06mm, with high precision and heavy load. servo control is specially used for PMMA and PS/MS

Features：

our company has more than 10 years of acrylic professional equipment, design,production experience,very familiar with the physical characteristics and processing technology of acrylic sheet; For the traditional manual cutting board saw,the advantages of electronic saw are high safety,high efficiency,high precision, easy to operate;

The three axes of the equipment adopt imported precise linear guide rail, which is specially designed for precise cutting of PMMA，PS,MS and other plastic plates.

The main technical parameters：

Unit type	SD-3200	SD-2600	SD-2600X
Scope of application	PMMA、PS、MS
Dimensions(L × W×H)	6250mm×5735mm×1680mm	5230mm×5085mm×1660mm	5230mm×4585mm×1660mm
Sawing length	3200mm	2600mm	2600mm
Sawing width	3200mm	2600mm	2600mm
Sawing thickness	120mm	120mm	80mm
Dia.of main saw blade	φ305-455mm	φ305-455mm	φ305-405mm
Axis dia.of main saw blade	φ30mm	φ30mm	φ30mm
Rotate speed of main saw blade	2000- 5000rpm(frequency control of motor speed )	2000-5000rpm(frequency control of motor speed)	2000- 5000rpm(frequency control of motor speed )
Dia.Of grooving saw blade	φ200(optional )	φ200(optional )	No
Axis dia.Of grooving saw blade	φ30mm	φ30mm	No
Rotate speed of grooving saw blade	7000rpm	7000rpm	No
Saw carriage forward speed	1-30m/min	1-30m/min	1-30m/min
Saw carriage back speed	60m/min	60m/min	60m/min
Head saw motor	11KW	11KW	11KW
Saw base drive motor	1000W (Imported servo )	1000W (Imported servo)	1000W (Imported servo )
Automatic feeding motor	1500W (Imported servo )	1000W (Imported servo)	1000W (Imported servo )
High pressure blower motor	2.2KW	2.2KW	2.2KW
Total Power	16KW	16KW	16KW
Automatic feeding speed	0- 50m/min	0-50m/min	0-50m/min
Operation pressure	5-7kg/cm²	5- 7kg/cm²	5- 7kg/cm²
Workbench height	960mm	960mm	960mm
Machine net weight	5000kg	4500kg	3500kg
