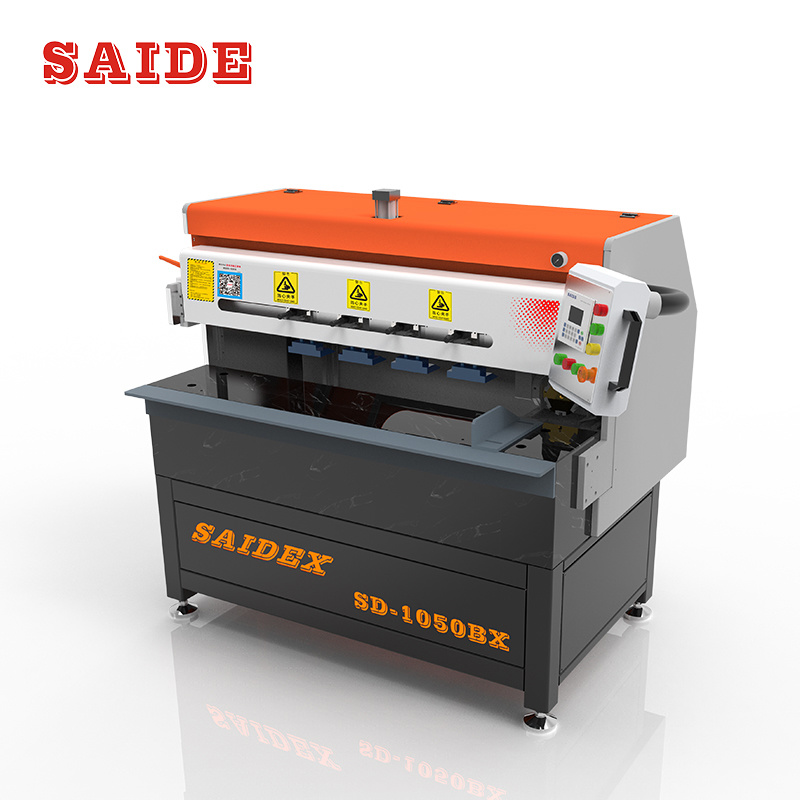

SD-1050BX Dimaond polishing machine
SD-1050B Dimaond polishing machine
Product Examples：
Features：

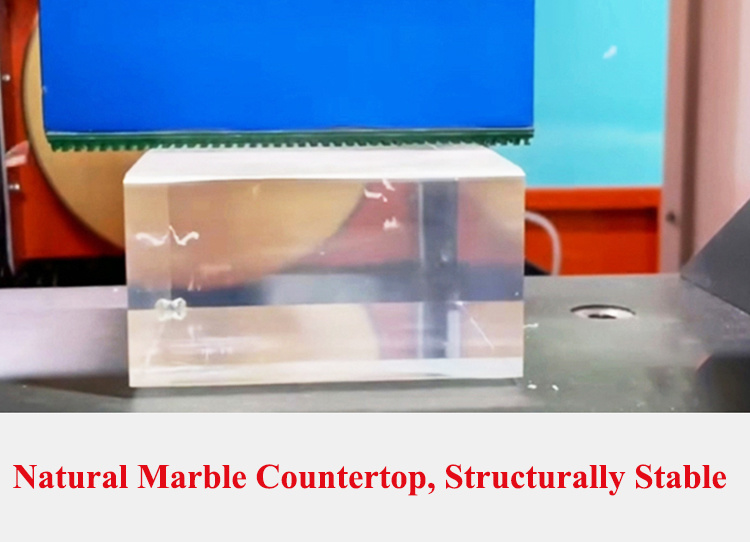

1.The main structure of the natural marble,which is featured with strong stability,effectively avoiding the easy deformation of iron casting;
2.No adjustment,fast installation,accurate adjustment,the tool is directly installed in place,without adjustment,simple operation and fast material clamping;
3.Infinite circular process (it can be reprocessed without standby);
4.With safety protection device;
5.This machine power consumption only 220V Voltage.
The main technical parameters：
| Unit type | SD-1050BX |
| Machine size | 1550mm(L)×1050mm(W)×1340mm(H) |
| Power supply | AC220 |
| Work area | 1000mm(L)×100mm(T)extensible |
| Spindle speed | 6000-12000rpm |
| Processing speed | 0-1m/min |
| Cutting angle | 0-60° |
| Steam input | ≥0.5mpa |
| Machine power | 2.5kw |
| Processing way | spindle feeding |
| Suction Inlet | φ100mm |
| Machine weight | 1300kg |
